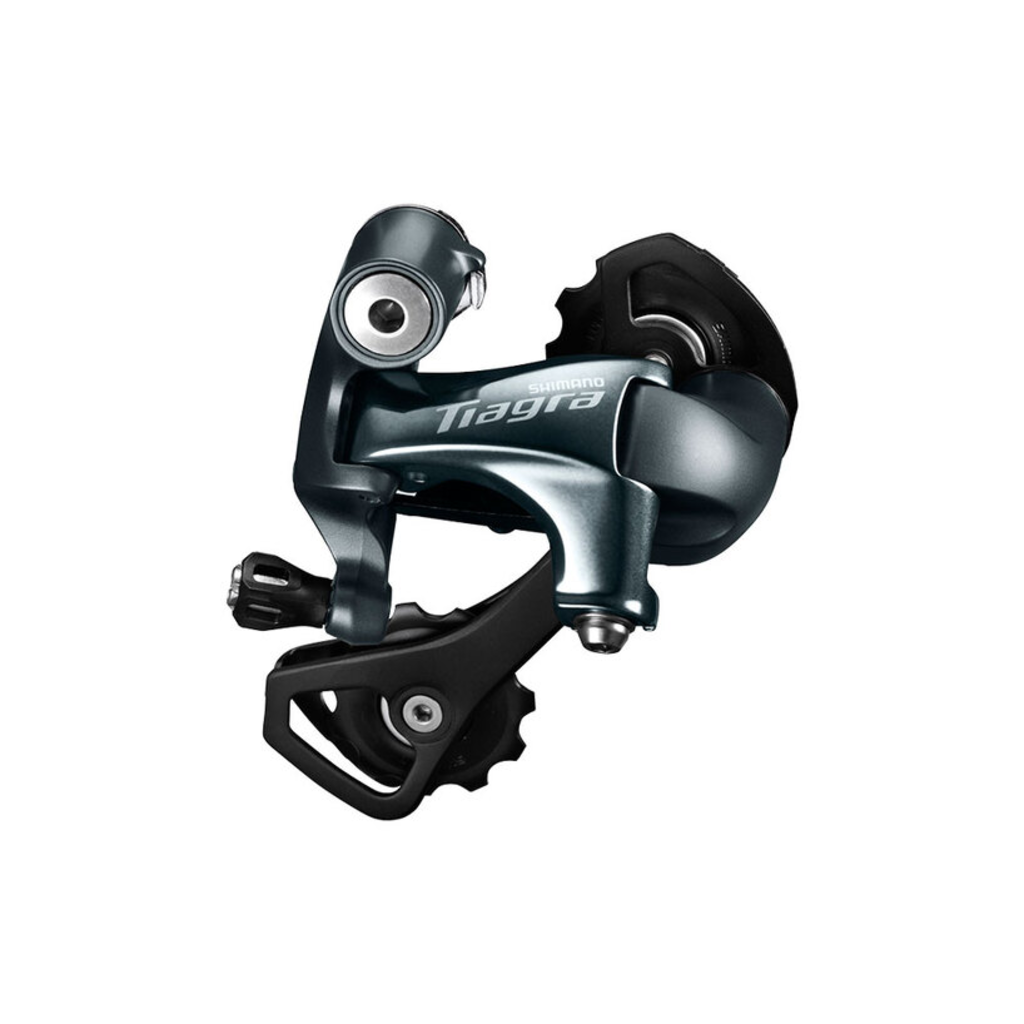

SHIMANO RD-4700 TIAGRA 10-SPEED REAR DERAILLEUR

The SHIMANO TIAGRA rear derailleur shifts with a consistently smooth, light action. Designed for 10-speed road drivetrains, it is offered in short and medium cage options.

SS / Short - 10 speed

  • Low sprocket max. = 28T
  • Low sprocket min. = 25T
  • Max. front difference = 16T
  • Top sprocket max. = 14T
  • Top sprocket min. = 11T
  • Total capacity = 33T

GS / Medium - 10 speed

  • Low sprocket max. = 34T (Front double) 32T (Front triple)
  • Low sprocket min. = 28T (Front double) 25T (Front triple)
  • Max. front difference = 16T (Front double) 20T (Front triple)
  • Top sprocket max. = 12T
  • Top sprocket min. = 11T
  • Total capacity = 41T
